Burlington Chaplin Traditional Radiator (inc. Valves + Electric Heating Kit)

The Chaplin chrome traditional radiator with angled valves & electric Heating Kit, with its classic traditional design this radiator would look great in any period bathroom. Manufactured to the highest standards whilst maintaining the authenticity of the piece.

Package includes the radiator and set of 2 angled radiator valves. Burlington radiators contain steel and are therefore only suitable for hot water (closed) central heating systems. Supplied with wall fixings. Can be wired into the electric mains for summer towel warming.

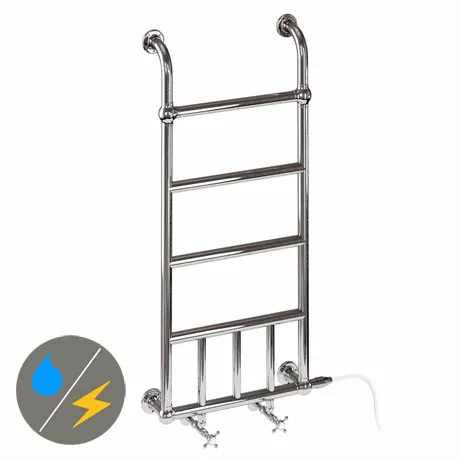

Burlington Chaplin chrome traditional radiator details

• Product Specification
• Colour/Finishes – Polished Chrome
• Product Type – Traditional
• Material – Steel
• Size – h 114.2cm x w 54.2cm x d 13.6cm
• Overall Height – 114.2cm
• Output- 1092BTUs/320 watts(T=50°C)
• Distance from wall to the rail – 94MM
• 32mm tubes
• Includes all brackets and fixings.
• Operating pressure up to 8 bar.(Certified by BEN N.L)
• Maximum working temperature:70°C
• 234mm plumbing pipe centers
• Compliance / Approvals
• BS EN442-1:1996
• Specification for radiators and convectors. Technical specifications and requirements
• BS EN442-2:1997
• Specification for radiators and convectors. Test methods and rating
• Chrome plated to BS EN248:2002
• Sanitary tapware. General specification for electrodeposited coatings of Ni-Cr
• Dual-fuel towel rail
• During electric heating use the valves must be left open so the radiator is full of water to ensure correct performance.

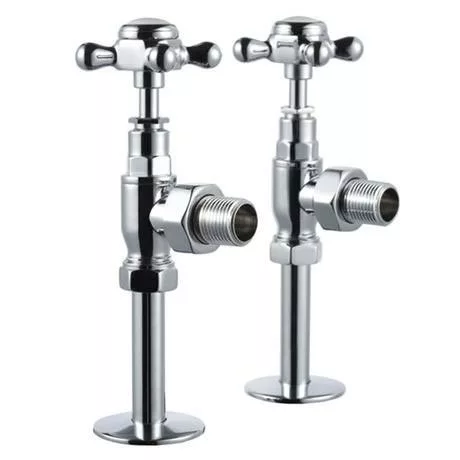

Burlington Angled radiator valves details

• Product Specification
• Finishes – High polished and chrome plated
• Product Type – Traditional
• Material – Body and handle are both brass construction
• Compliance / Approvals
• Chrome plated to BS EN248:2002
• Sanitary tapware. General specification for electrodeposited coatings of Ni-Cr

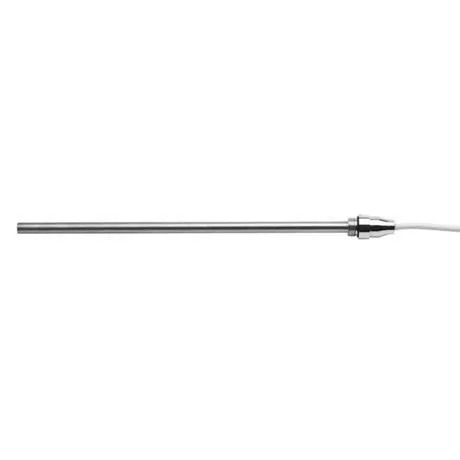

Burlington Summer electric heating kit – 150 watts details

• R8 CHR Electric Heating kit
• Product Specification
• Finishes – Chrome
• Product Type – Traditional
• Material – Tubular shaped bodies are of stainless steel with heating resistance inside.
• Compliance / Approvals
• BS EN60730-2-9:2002
• Automatic electrical controls for household and similar use. Particular requirements for temperature sensing controls
• Chrome plated to BS EN248:2002
• Sanitary tapware. General specification for electrodeposited coatings of Ni-Cr
• Electric kits are rated IP44

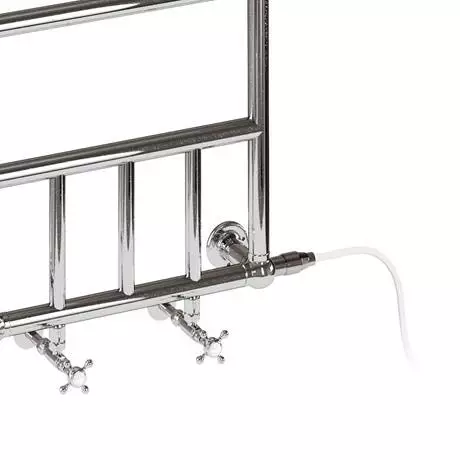

Dual Fuel Radiator: Connected to the central heating system, and also to the electric socket.

Comprises

(1) Burlington Chaplin chrome traditional radiator – R12CHR
(1) Burlington Angled radiator valve – R6CHR
(1) Burlington Summer electric heating kit – 150 watts – R8
